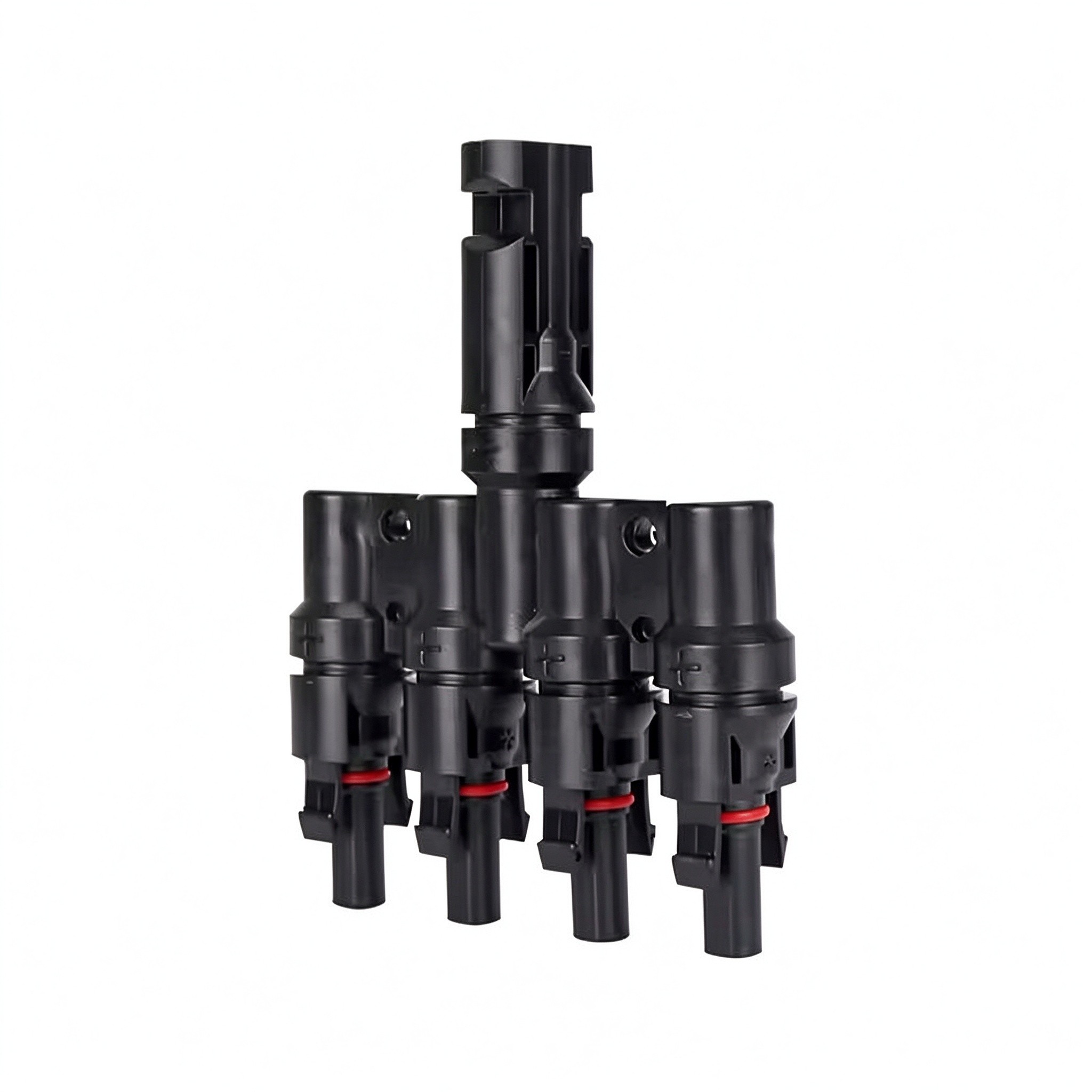

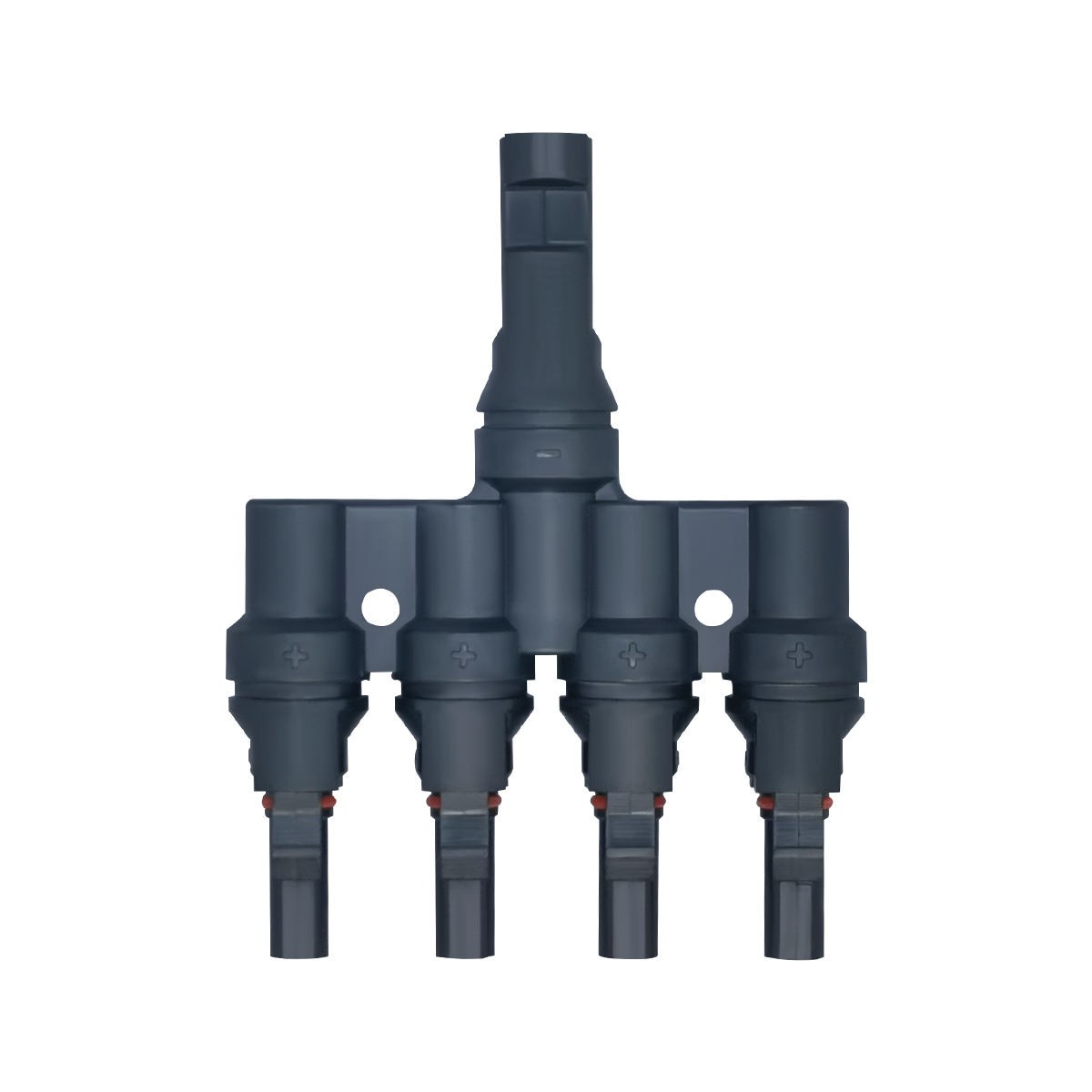

T4 Solar Connector PV004-T4
Rated Voltage: DC 1000V / 1500V | Rated Current: 30A / 50A
CE
MOQ: 1000
Lead Time: 15-25 Days
Application
Technical Specifications
| Rated Voltage | DC 1000V / 1500V |
|---|---|
| Rated Current | 30A / 50A |
| IP Rating | IP68 |
| Cable Size | 2.5-6mm2 |
| Temperature Range | -40C ~ +90C |
| Standard | IEC 62852:2014 |

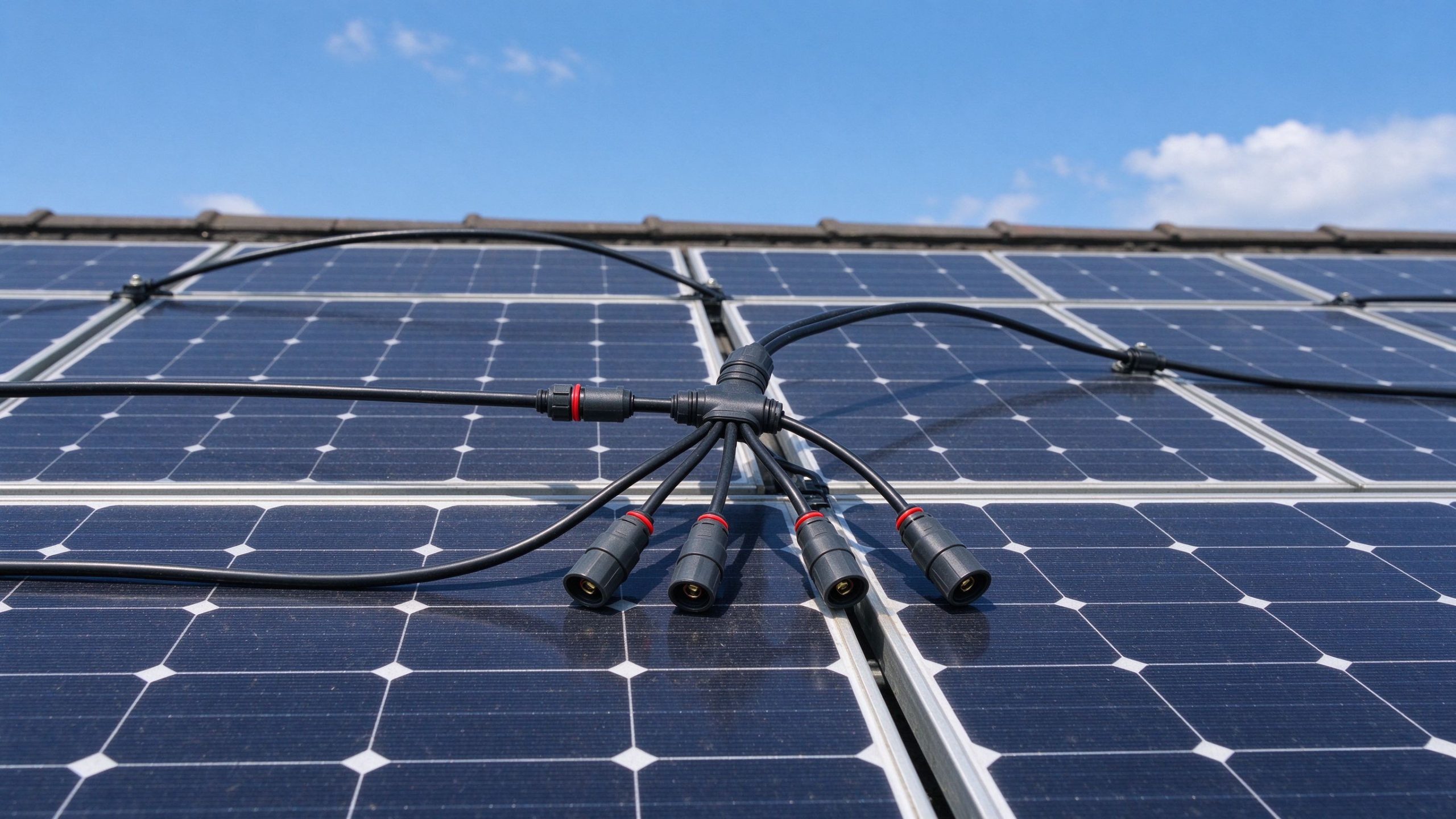

Applications
Customization
| OEM Support | Yes |
|---|---|
| Sample Support | Yes |
FAQ
What is the rated voltage and current of the T4 solar connector?
Rated 1000-1500V DC / 30-50A, ideal for multi-string PV branch connection (1-to-4 / 4-to-1).
Is the T4 connector compatible with MC4?
Yes, fully MC4-compatible - direct replacement in existing PV systems and mixed-array wiring.
What is the IP rating and temperature range?
IP68 protection (dust-tight, continuous water immersion), operating range -40C to +90C.
