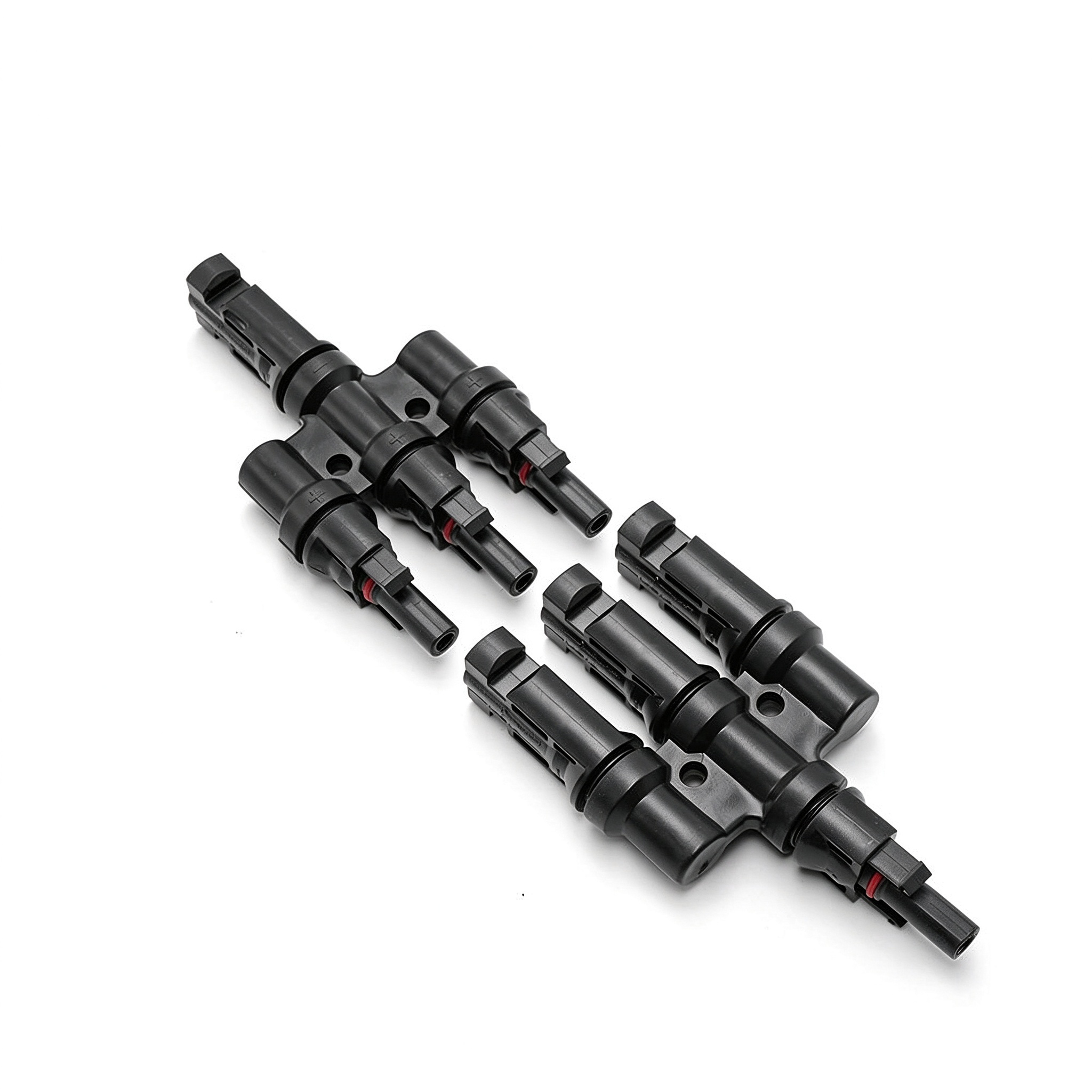

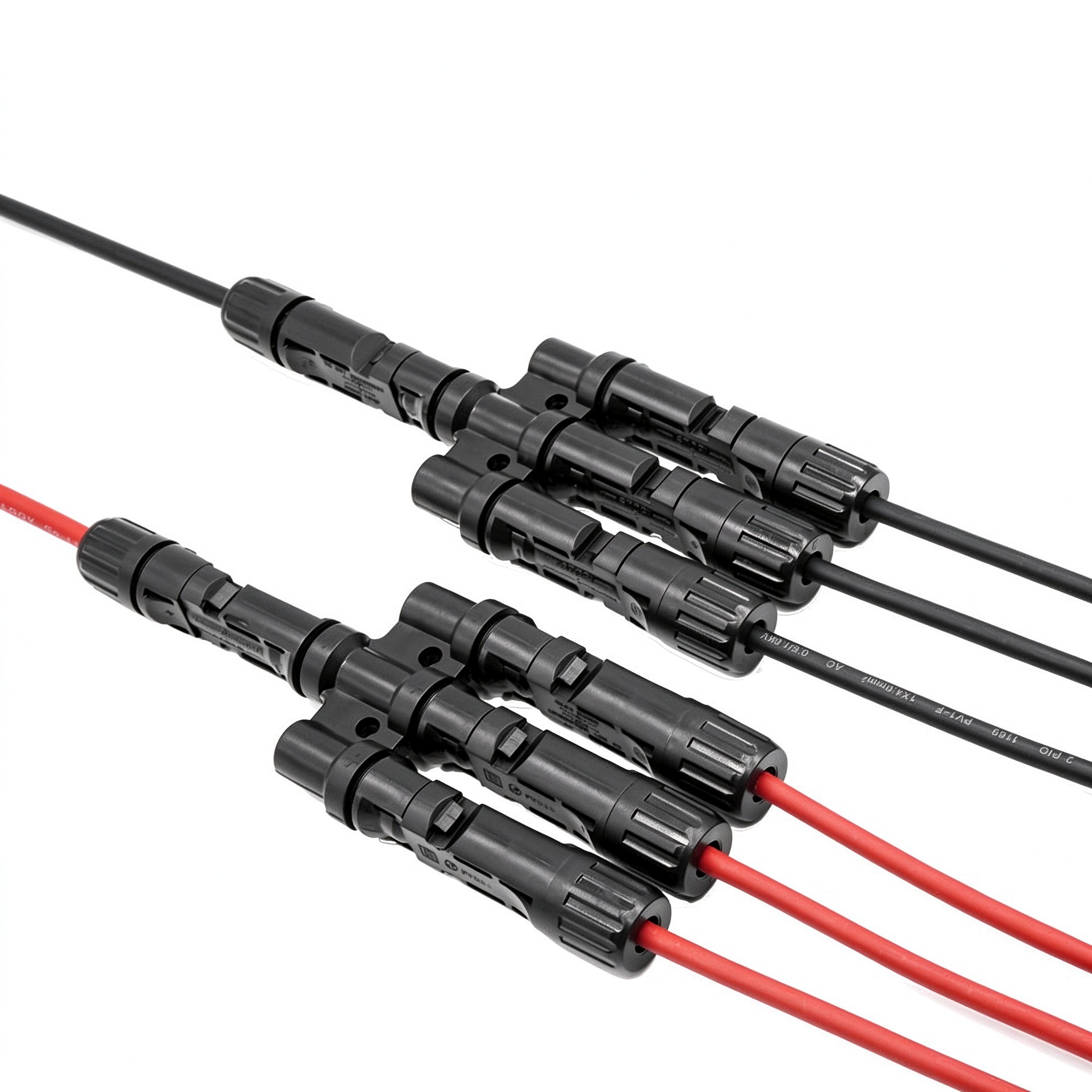

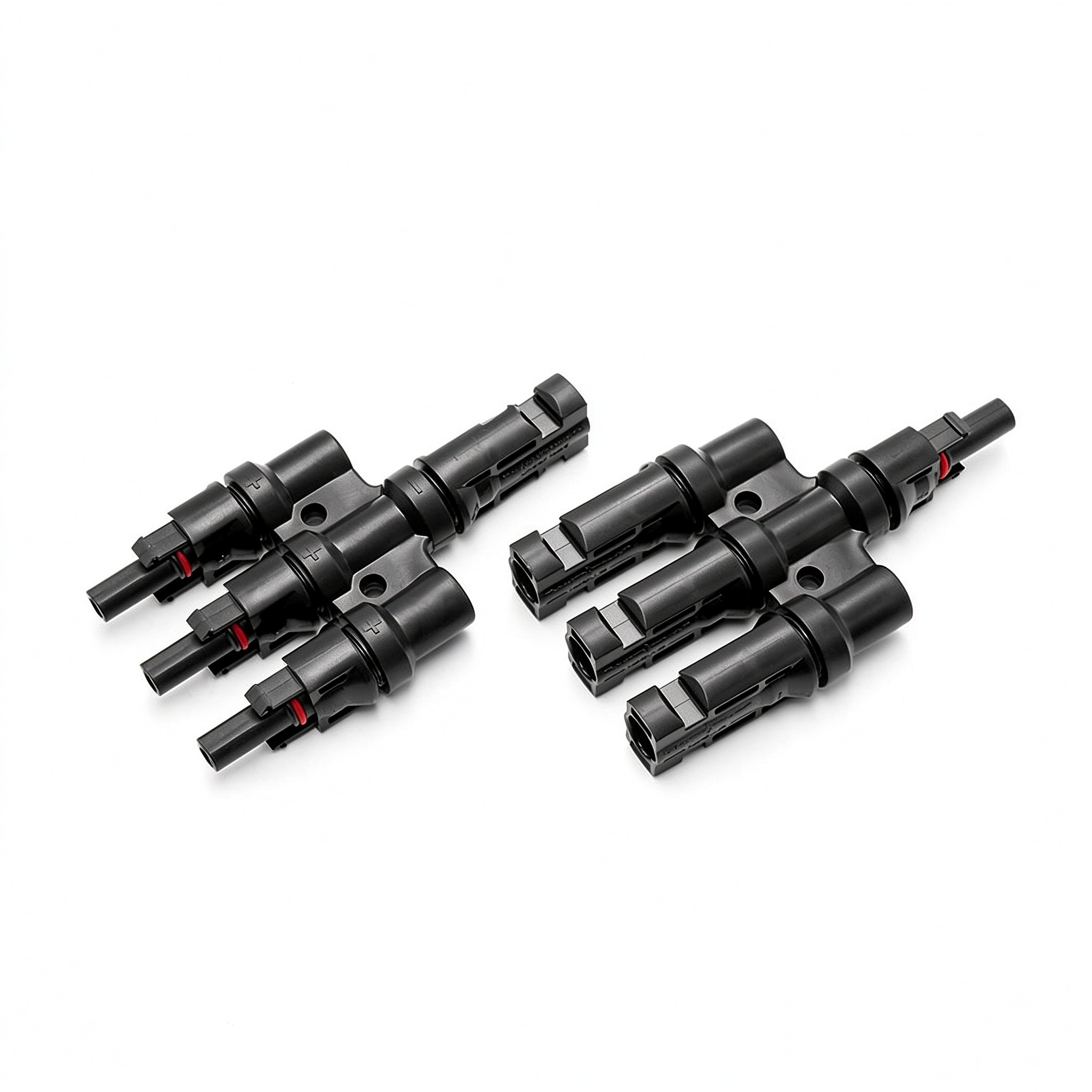

T3 Solar Connector PV004-T3
Rated Voltage: DC 1000V | Rated Current: 30A
CE
MOQ: 1000
Lead Time: 15-25 Days

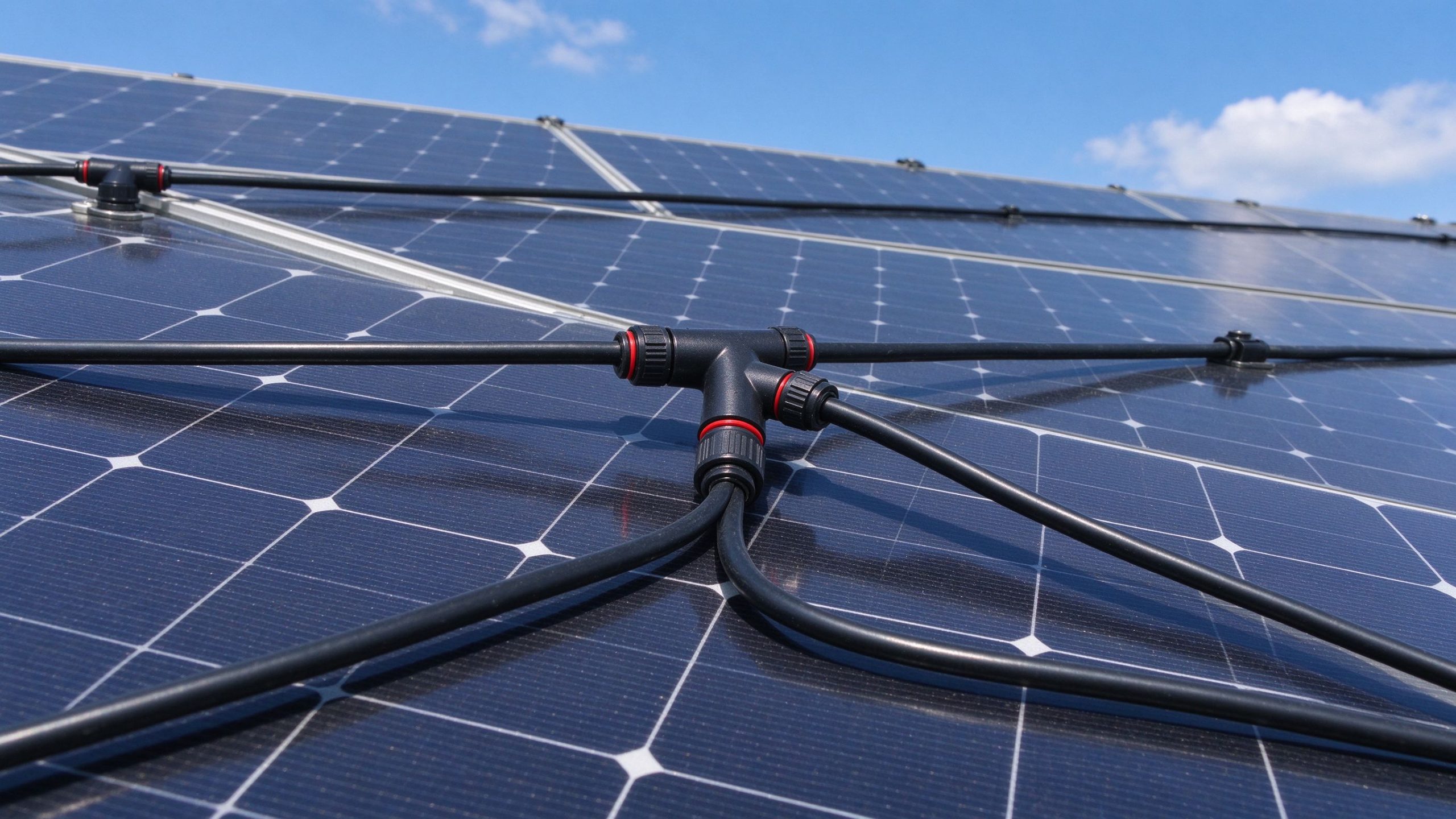

Application
Technical Specifications
| Rated Voltage | DC 1000V |
|---|---|
| Rated Current | 30A |
| IP Rating | IP65 |
| Cable Size | 2.5-6mm2 |
| Temperature Range | -40C ~ +85C |
| Standard | IEC 62852:2014 |
Applications
Customization
| OEM Support | Yes |
|---|---|
| Sample Support | Yes |
FAQ
What is the rated voltage and current of the T3 solar connector?
Rated DC 1000V / 30A per IEC 62852:2014, ideal for PV string and T-branch connection.
Is the T3 connector compatible with MC4?
Yes, fully MC4-compatible - direct replacement in existing PV systems and mixed-array wiring.
What is the IP rating and temperature range?
IP65 protection (dust-tight, water-jet protected), operating range -40C to +85C with a 100C upper limit.
