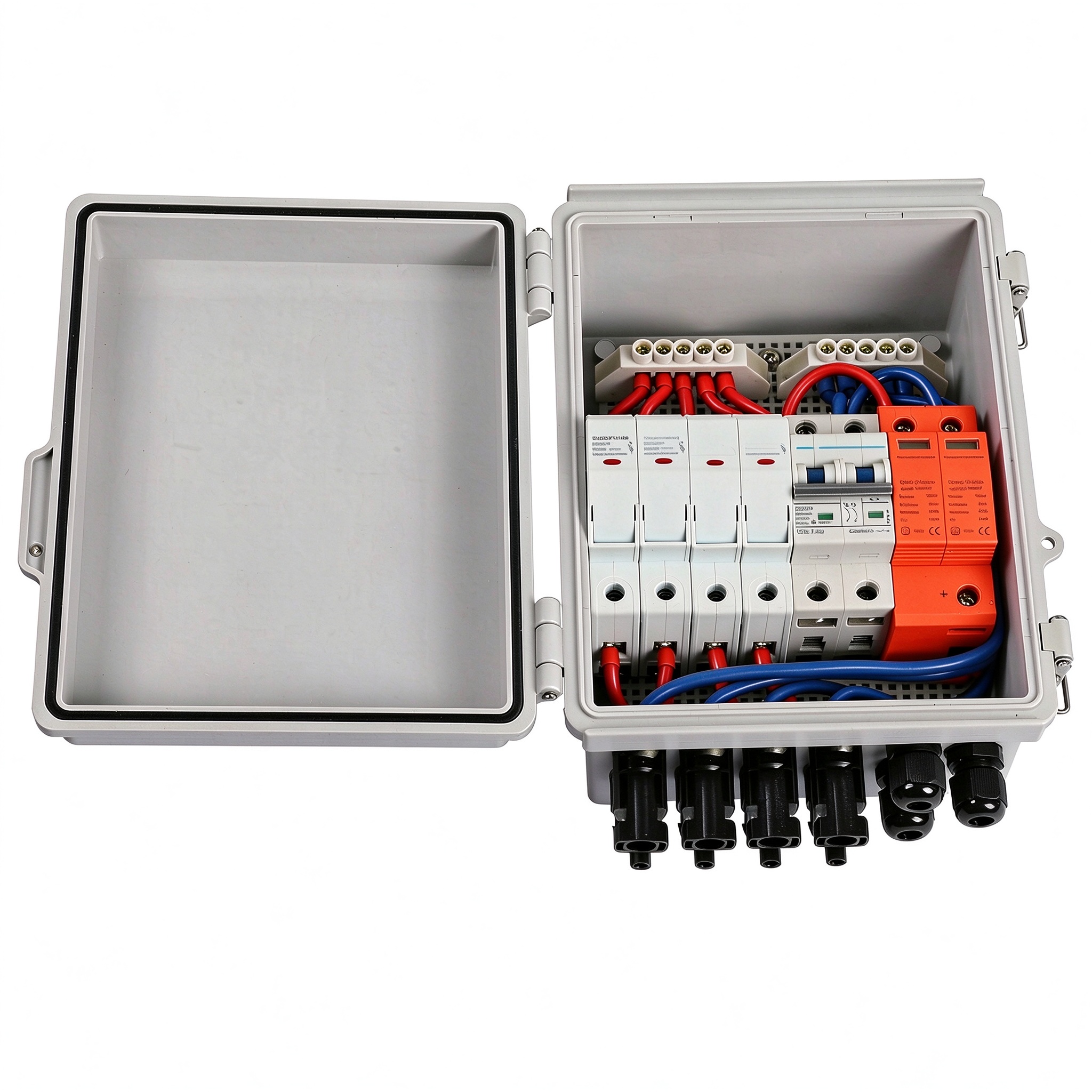

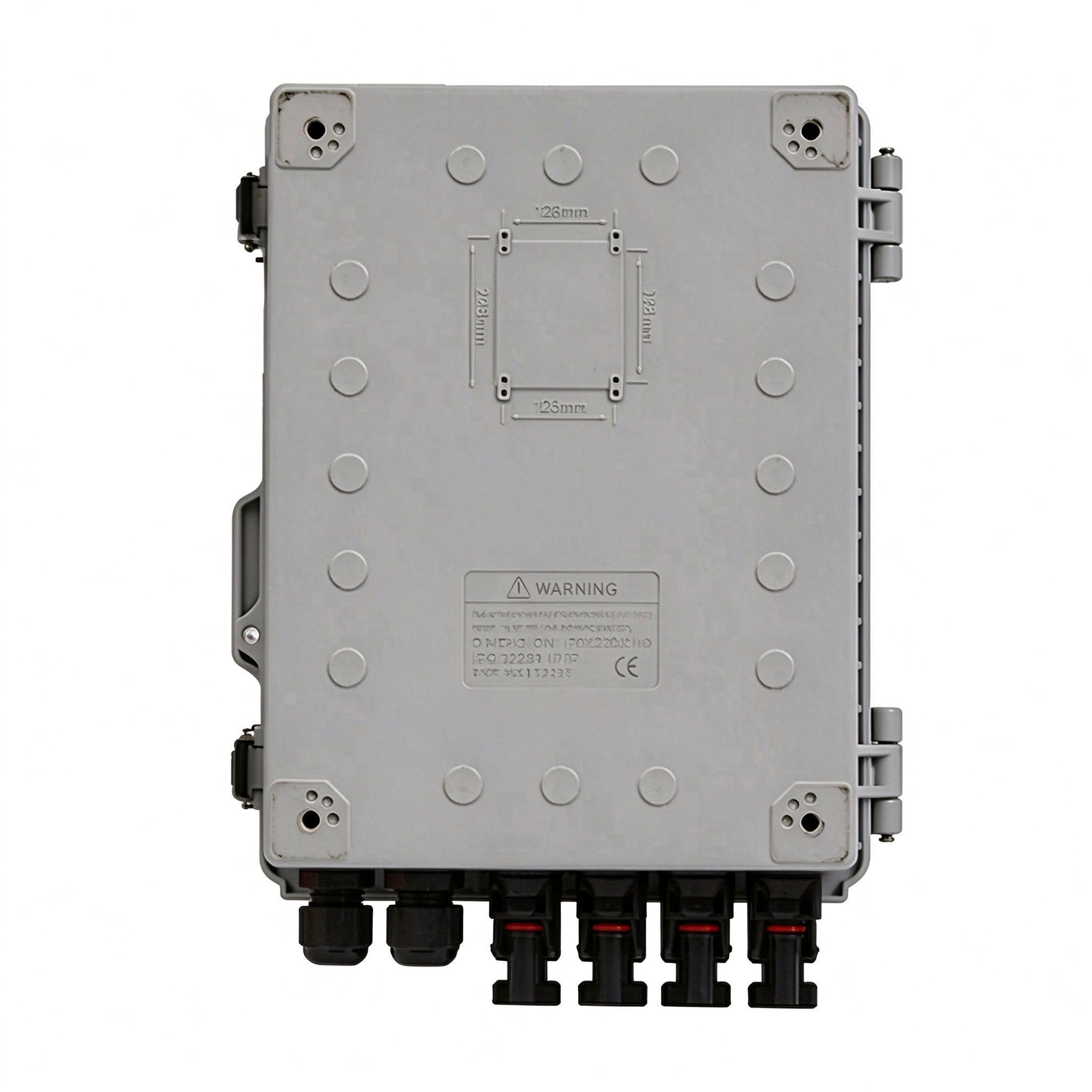

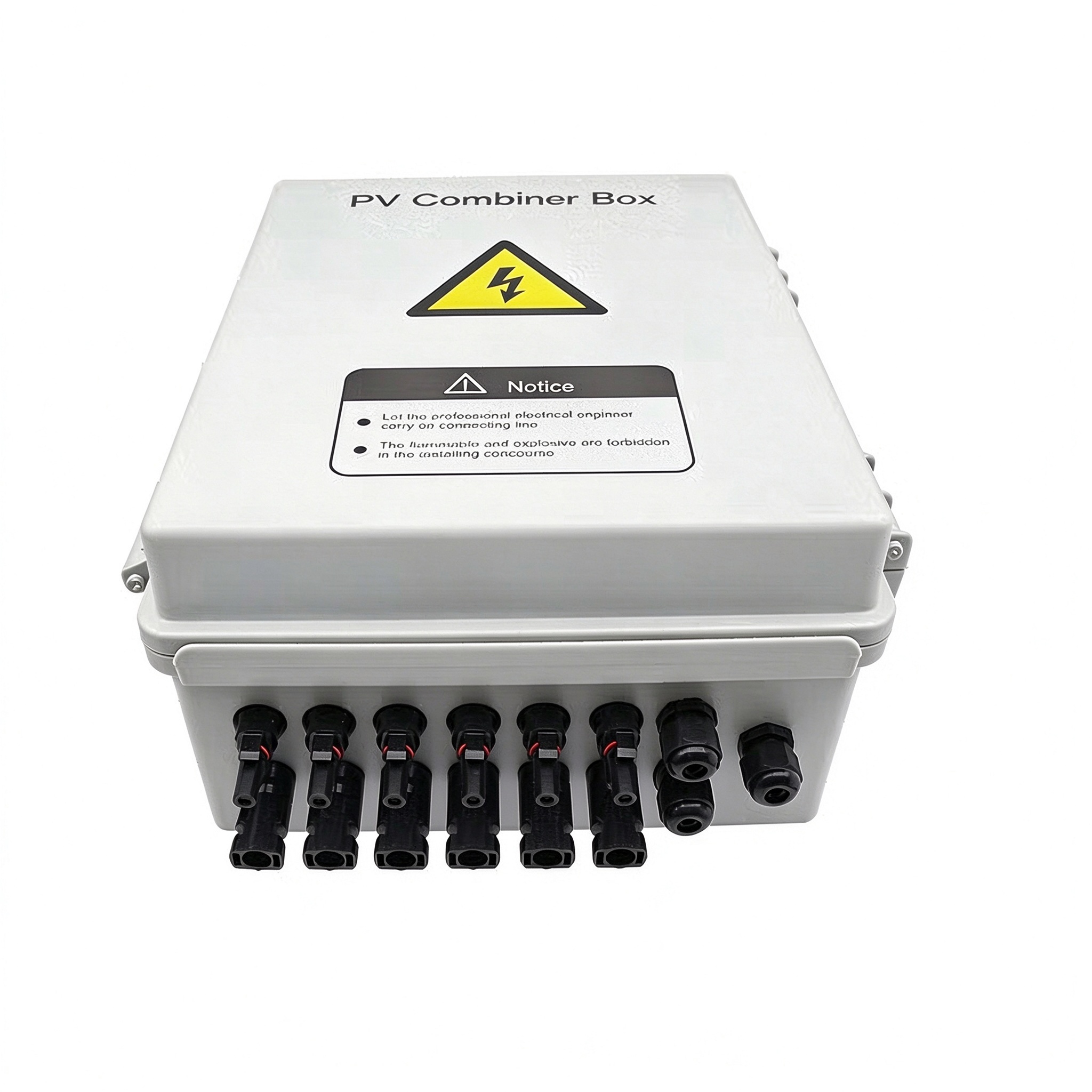

PV DC Combiner Box (Smart)
Rated Voltage: DC 1000V / 1500V | Rated Current: 10-20A per string
CE
MOQ: 1000
Lead Time: 15-25 Days
Application
Technical Specifications
| Rated Voltage | DC 1000V / 1500V |
|---|---|
| Rated Current | 10-20A per string |
| IP Rating | IP65 |
| Mating Cycles | >1000 |
| Cable Size | 4-6mm2 in / 50-70mm2 out |
| Temperature Range | -40C ~ +70C |
| Standard | IEC 62852 / GB 7251 |
Applications
Customization
| OEM Support | Yes |
|---|---|
| Sample Support | Yes |
FAQ
What is the rated voltage of this PV combiner box?
DC 1000V and 1500V options, suitable for residential rooftop and large ground-mount plants.
How many PV strings can it combine?
4 / 6 / 8 / 12 / 16 strings optional, each protected by PV DC fuse and DC circuit breaker.
Does it support remote monitoring?
Yes, the smart version integrates RS485 Modbus-RTU, monitoring string current, bus voltage, breaker status and SPD failure alarm.
