Hybrid Solar Inverter (3.6-6.5KW Series)
Rated Voltage: 220/230/240VAC (24/48VDC battery) | Rated Current: 120A max PV charging
CE / IEC
MOQ: 1000
Lead Time: 15-25 Days
Application
Technical Specifications
| Rated Voltage | 220/230/240VAC (24/48VDC battery) |
|---|---|
| Rated Current | 120A max PV charging |
| IP Rating | IP20 |
| Temperature Range | -10C ~ +40C |
| Standard | CE / IEC |

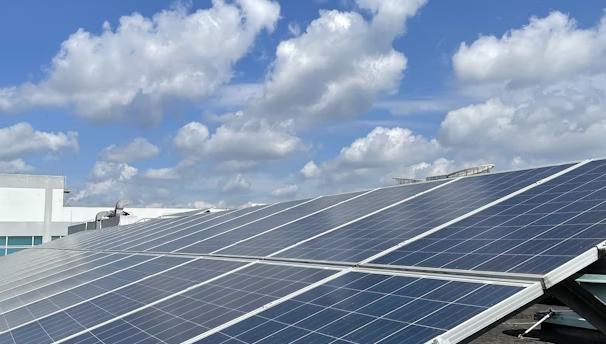

Applications
Customization
| OEM Support | Yes |
|---|---|
| Sample Support | Yes |
FAQ
What power ratings and battery options are available?

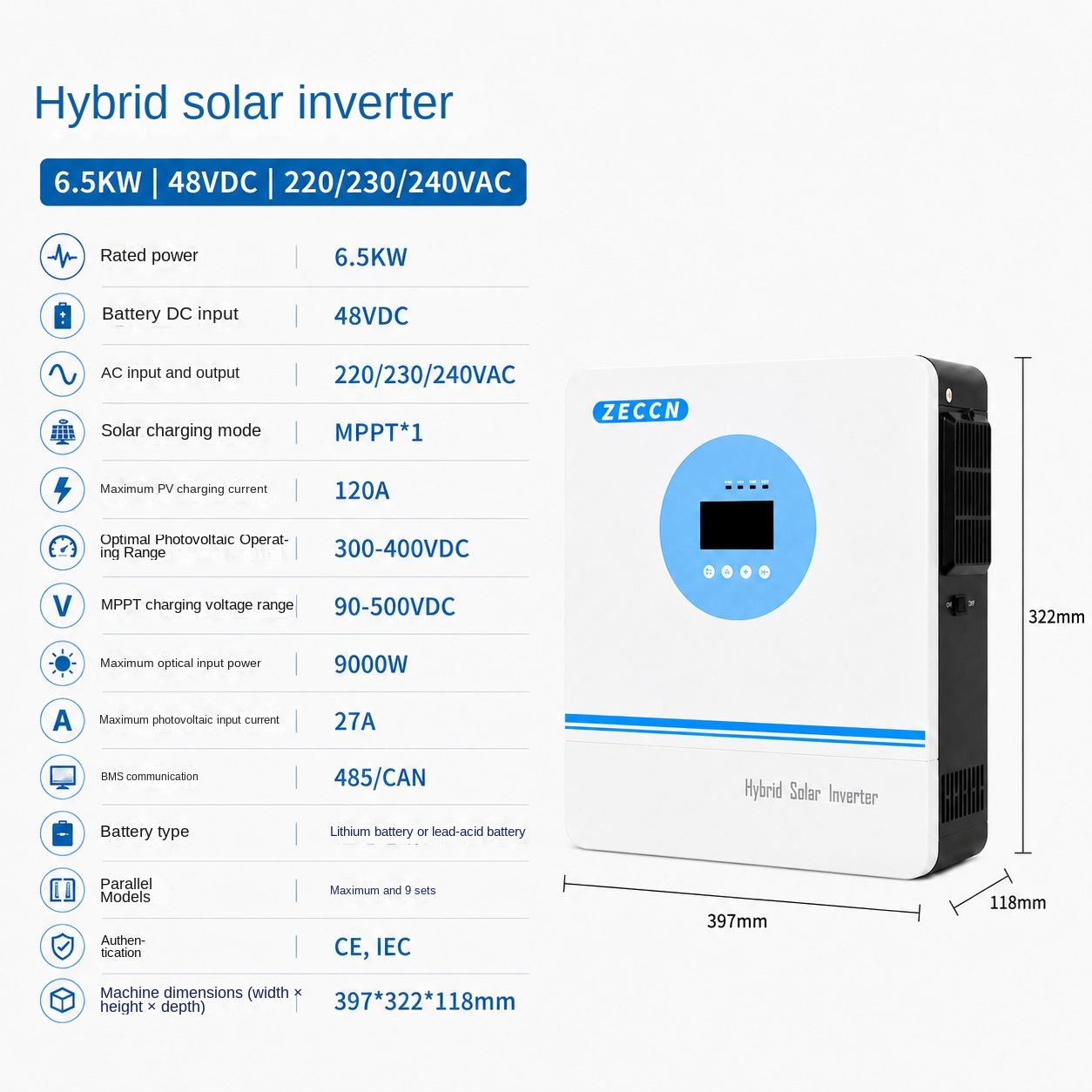

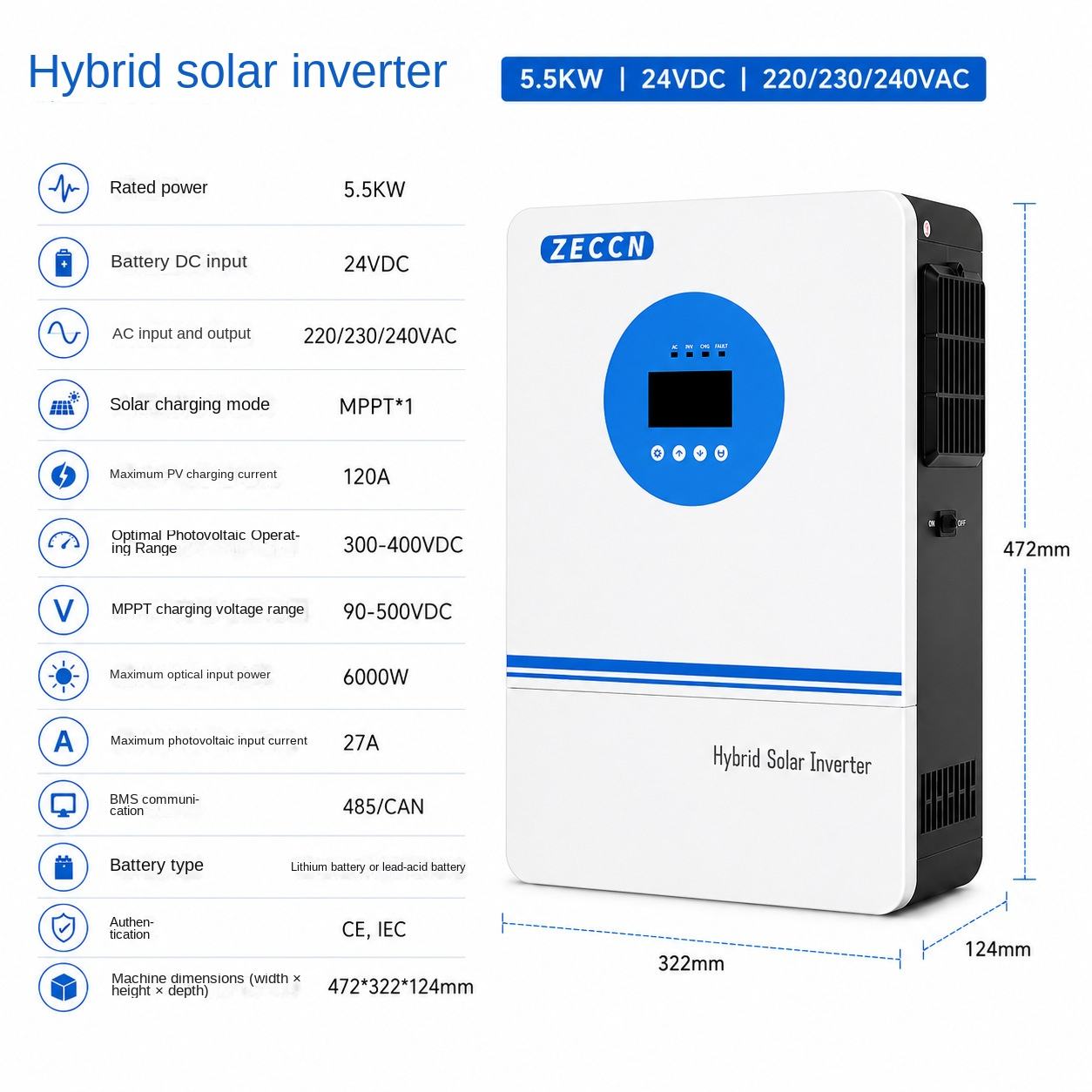

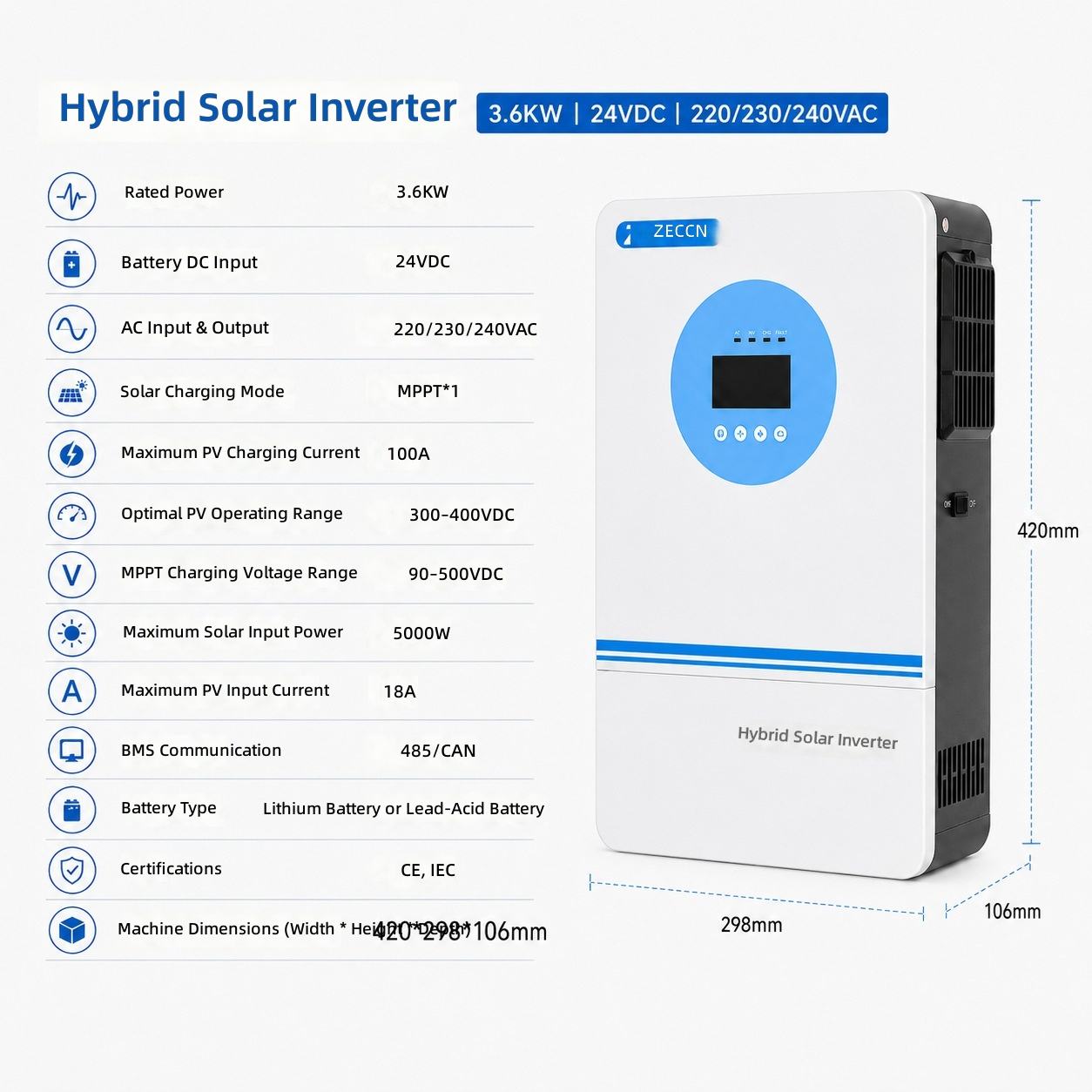

3.6KW (24VDC), 5.5KW (24VDC) and 6.5KW (48VDC) models, all with 220/230/240VAC output.
What is the MPPT solar input range?
MPPT charging voltage range 90-500VDC (optimal 300-400VDC), max PV input power 5000-9000W depending on model.
Can multiple inverters run in parallel?
Yes, up to 9 units in parallel (6.5KW model). BMS communication via RS485/CAN, remote monitoring supported.
