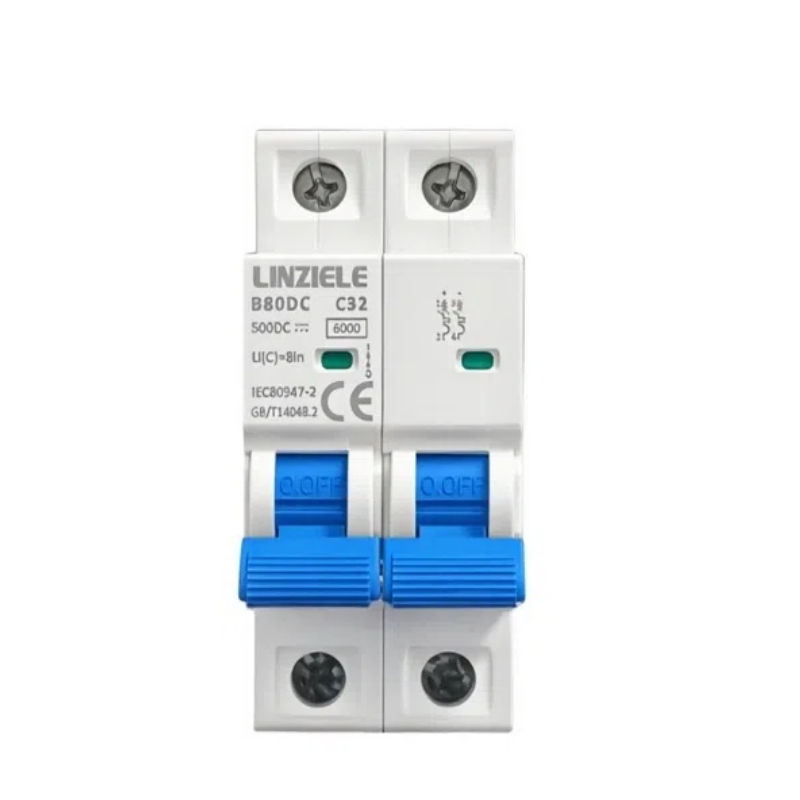

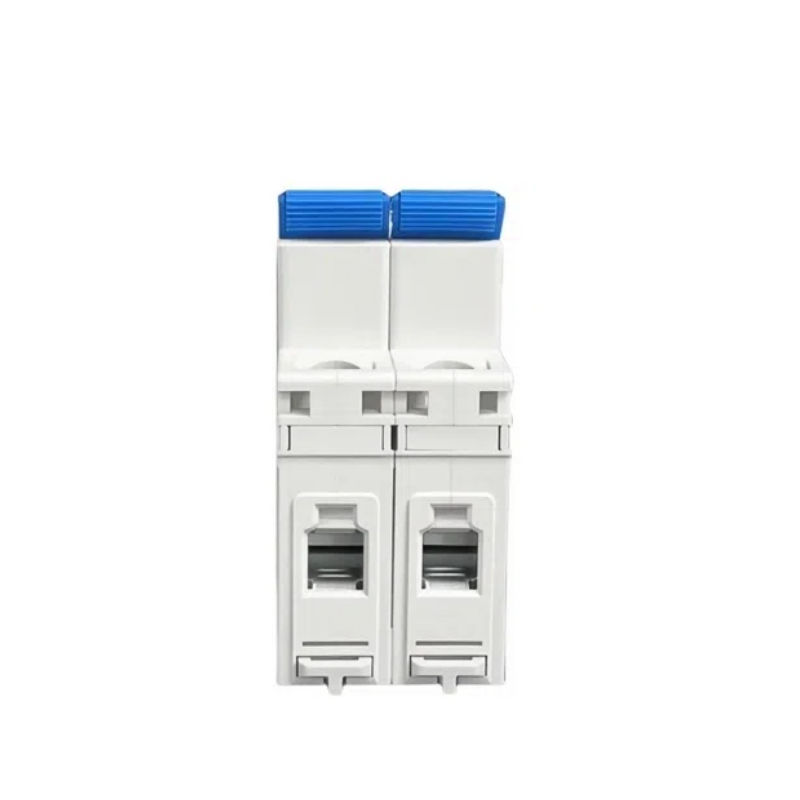

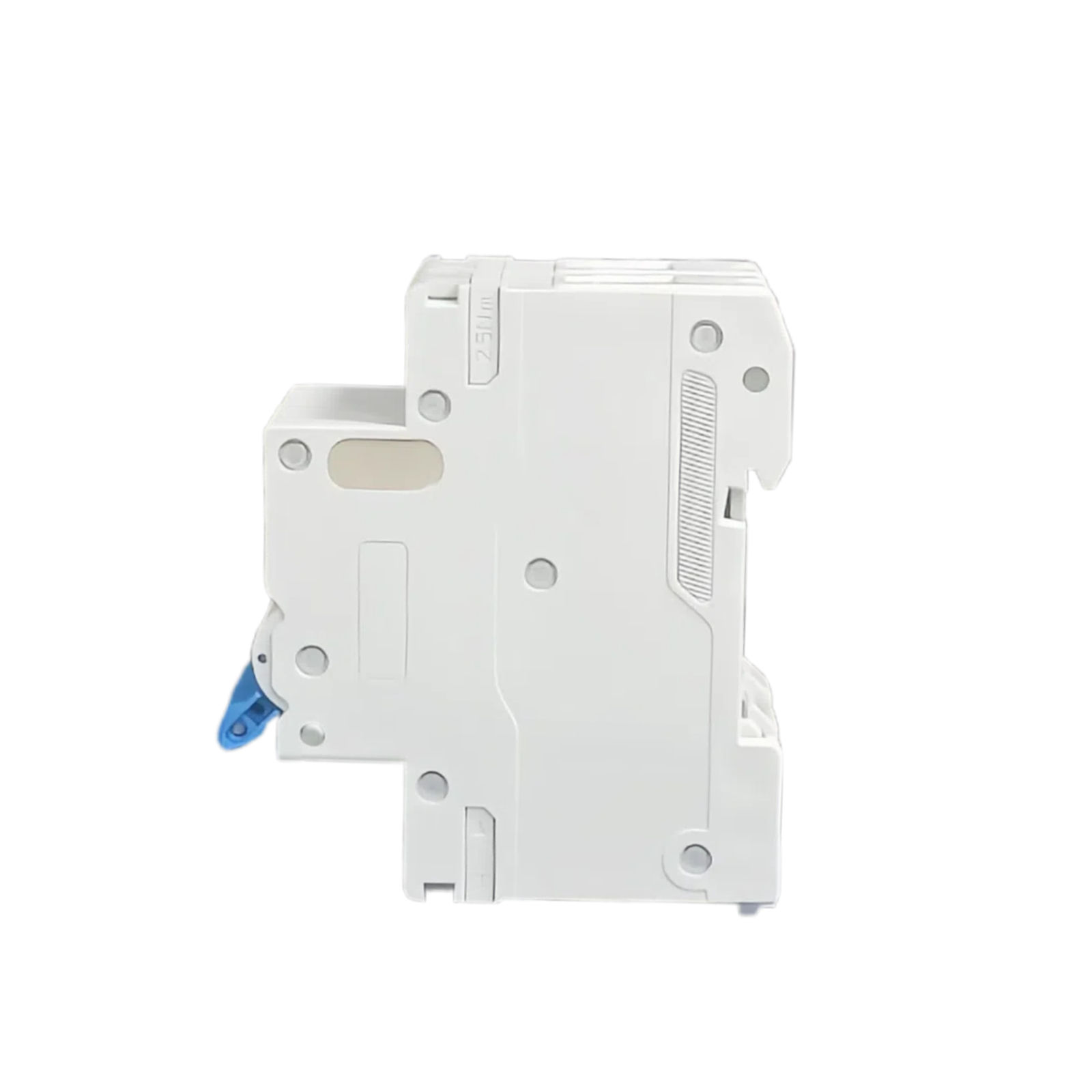

DC Miniature Circuit Breaker (B80DC Series)
Rated Voltage: DC 500V | Rated Current: 1-63A (C curve)
CE
MOQ: 1000
Lead Time: 15-25 Days
Application
Technical Specifications
| Rated Voltage | DC 500V |
|---|---|
| Rated Current | 1-63A (C curve) |
| IP Rating | IP20 |
| Mating Cycles | 10000 |
| Cable Size | 1.5-25mm2 |
| Temperature Range | -25C ~ +70C |
| Standard | IEC 60898-2 / IEC 60947-2 |

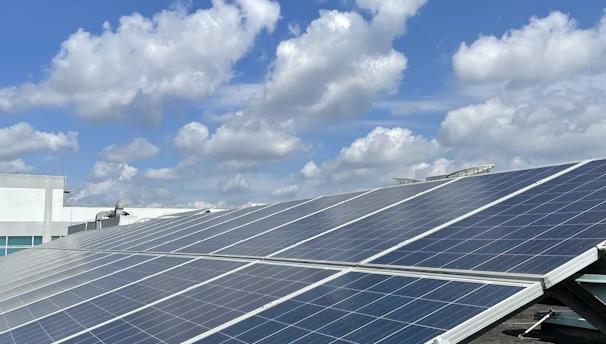

Applications
Customization
| OEM Support | Yes |
|---|---|
| Sample Support | Yes |
FAQ
What is the rated voltage of this DC circuit breaker?
500VDC with 6kA breaking capacity, suitable for PV combiner boxes and DC distribution systems.
What current ratings are available?
1-63A with C curve trip characteristic (C32 as shown). Custom ratings available on request.
Which standards does it comply with?
IEC 60898-2 and IEC 60947-2, CE certified.
